PERSONNEL PLATFORM/ PIT COVER/ VEHICLE LIFT
- 12,000 Lb. Cap
- Powered Platform
- Dual Controls
- Built in Safety Railing
- Vehicle lifting adapters included, lift passenger vehicle and light trucks
- 220v 1 phase power
- custom designed for your pit.
Model: TA2600
Safely & Efficiently remove entire assemblies, remove or install transmission
- Engine Lift Table
- 2600 Lb. Cap
- Air/ Hydraulic Design
- 30 Inch X 51 Inch
- Drilled and Tapped Surface for mounting fixtures
- Extendable Top Deck
- Deck angle also adjustable
- Maximum Lift 75 Inches
- Convenient Pull Handle
- Dual Hydraulics
- Locking Casters
- Pump Unit
- Optional Fixtures Kit
- Air/Hydraulic Power Pack
- MODEL TA2600R has a pendant remote control
Electric Hydraulic Floor Jack for Heavy Trucks
- Rated Voltage 36V
- Battery Qty 2pcs
- Capacity 20T
- Net Weight 43.5 Kg
- Gross Weight 46 Kg
- Packing Size 607x317x341mm
- MODEL TA2600R has a pendant remote control
Electric Hydraulic Floor Jack for Heavy Trucks
- Rated Voltage 36V
- Battery Qty 2pcs
- Capacity 30T
- Net Weight 50 Kg
- Gross Weight 53 Kg
- Packing Size 607x317x341mm
- Qty/Pallet 9pcs
- Pallet Size 103x60x114cm
Electric Hydraulic Floor Jack for Heavy Trucks
- Rated Voltage 36V
- Battery Qty 2pcs
- Capacity 30T/15T
- Net Weight 40 Kg
- Gross Weight 43 Kg
- Packing Size 607x317x341mm
- Qty/Pallet 9pcs
- Pallet Size 103x60x114cm
Electric Hydraulic Floor Jack for Heavy Trucks
- Rated Voltage 36V
- Battery Qty 2pcs
- Capacity 40T/20T
- Net Weight 46.5 Kg
- Gross Weight 49 Kg
- Packing Size 607x317x341mm
- Qty/Pallet 9pcs
- Pallet Size 103x60x114cm
Electric Hydraulic Floor Jack for Heavy Trucks
- Rated Voltage 36V
- Battery Qty 2pcs
- Capacity 50T/25T
- Net Weight 72.5 Kg
- Gross Weight 76 Kg
- Packing Size 779x329x343mm
- Qty/Pallet 9pcs
- Pallet Size 99x80x133cm
Electric Hydraulic Floor Jack for Heavy Trucks
- Rated Voltage 36V
- Battery Qty 2pcs
- Capacity 50T/30T/15T
- Net Weight 60 Kg
- Gross Weight 64 Kg
- Packing Size 779x329x343mm
- Qty/Pallet 9pcs
- Pallet Size 99x80x111cm
Electric Hydraulic Floor Jack for Heavy Trucks
- Rated Voltage DC 18V
- Capacity 2T
- Rated Power 400W
- Rated Current 20A
- Battery Capacity 5000 mAh
- Battery Energy 90wh
- Net Weight 48kg
- Gross Weight 50kg
- Packing Size 86x41x30cm
Config A Testing & Adjustments For Use With Vehicle Lift
- 4 Pcs Long Post With High Precision Cameras.
- Complete Computer Set and Accessories.
- Application: Use with aboveground lift for full Testing And Adjustments.
- Great for Car Dealers, Fast Lubes, Alignment Shops, Tire Stores.
Config B Testing And Adjustments
- 4 Pcs Short Post With High Precision Cameras
- Complete Computer Set and Accessories
- Application: For use in Fast Lubes or Drive-through lanes for fast alignment checks and adjustments. great for Car Dealers, Fast Lubes, Alignment Shops, Tire Stores
Config C TEST LANE
- 2 Pcs Short Post With High Precision Cameras
- Complete Computer Set and Accessories
- Application: For use in drive-through lanes for fast alignment checks
- Great for Car Dealers, Fast Lubes, Alignment Shops, Tire Stores
Config A Testing & Adjustments For Use With Vehicle Lift
- 4 Pcs Long Post With High Precision Cameras + Moveable Rear Columns.
- Complete Computer Set and Accessories.
- Moveable Rear columns for extended wheelbase vehicles.
- Application: For use in Fast Lubes or Drive through lanes for fast alignment checks and adjustments. great for Car Dealers, Fast Lubes, Alignment Shops, Tire Stores
Config PRO B
- 4 Pcs Short Post With High Precision Cameras
- Movable rear column for extended wheelbase vehicles
- Complete Computer Set and Accessories.
- Application: For use in Fast Lubes or Drive through lanes for fast alignment checks and adjustments. great for Car Dealers, Fast Lubes, Alignment Shops, Tire Stores

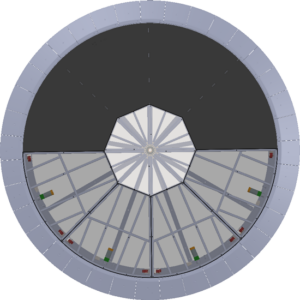

Solid State Electric Drive Motors
- Above Ground/ Surface Mount
- 4 Ton Capacity, 4.5 Metre Diametre Turn Table
- Heavy Tubular steel Construction
- Solid State Electric Drive Motors
- 2 Remotes for easy use
- 220V Single Phase Power

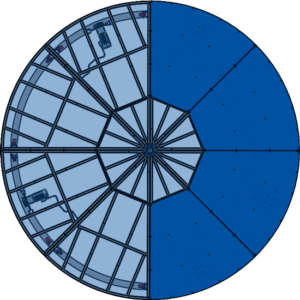

Solid State Electric Drive Motors
- In Ground/ Flush Mount
- 4 Ton Capacity, 4.5 Metre Diametre Turn Table
- Heavy Tubular steel Construction
- Solid State Electric Drive Motors
- 2 Remotes for easy use
- 220V Single Phase Power

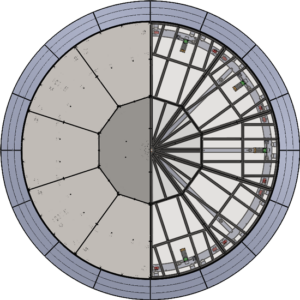

Solid State Electric Drive Motors
- Above Ground/ Surface Mount
- 4 Ton Capacity, 5 Metre Diametre Turn Table
- Heavy Tubular steel Construction
- Solid State Electric Drive Motors
- 2 Remotes for easy use
- 220V Single Phase Power

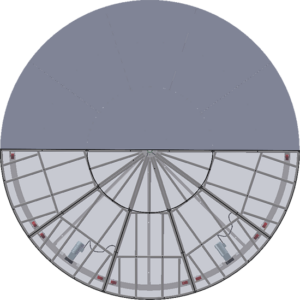

Solid State Electric Drive Motors
- In Ground/ Flush Mount
- 4 Ton Capacity, 5 Metre Diametre Turn Table
- Heavy Tubular steel Construction
- Solid State Electric Drive Motors
- 2 Remotes for easy use
- 220V 1 Phase Power
Product Details
“Now Effortlessly Lift Evs of Upto 2600 lbs with Stan Design’s Low Form Factor Lift Table. Replace batteries with great ease and safety, as our Lift Table comes fitted with dual high capacity hydraulic cylinders that run on shop air.
